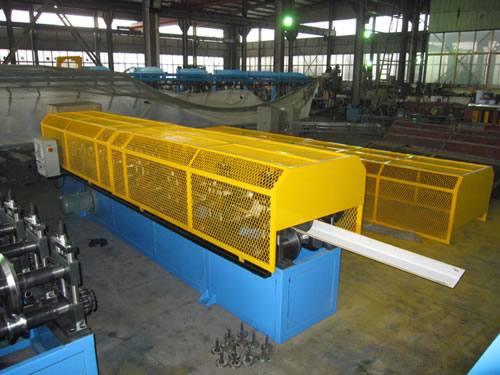

Layer Ridge Roll Forming Machine
Application and Feature
This roll forming machine is applied to manufacture corrugated steel & aluminium roof ridge cap. The finished metal ridges are widely used with colorful roofing tile sheets for building decoration. It is really a new type of energy-saving and high-efficiency metal processing equipment for steel & aluminum roof ridge cap panel.
Components
The production line of this roof ridge cap roll forming machine mainly consists of decoiler, sheet guiding equipment, main rollforming machine, cutter, hydraulic system, control system, and outlet table.
Main Technical Specification
| Material thickness | 0.4mm to 0.8mm |
| Working speed | 12m/min to 30m/min |
| Roll station | 10 stations |
| Main power | 5.5KW |
| Hydraulic power | 3KW |
| Control system | PLC Panasonic |
| Drive | By chain |
