Guardrail Forming Machine
Features & Application
1. This kind of guardrail forming machine adopts new stations to increase the firmness.
2. Gearbox transmission is employed to ensure more stable performance.
3. The finish products guardrails are used as guardrails, crash barriers or fences in highway, expressway, livestock farm, etc.
Technical Specification
| Thickness | 2.0mm to 3.2mm |
| Speed | 15m/min (not including cutting and punching) |
| Roll station | 17 stations |
| Main power | 37KW |
| Hydraulic power | 18.5KW |
| Control system | PLC Panasonic |
| Drive | By gear box or by chain |

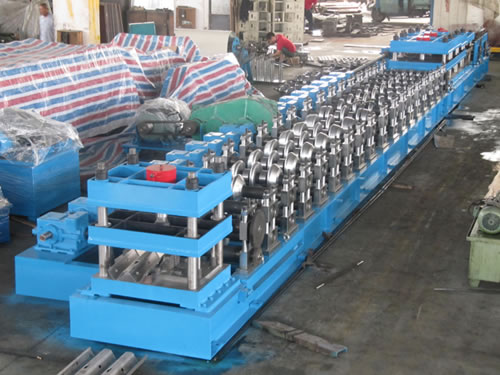

Picture of Guardrail Forming Machine
Picture of Guardrail
Profile Drawing of Guardrail
Working Process of Guardrail Forming Machine
