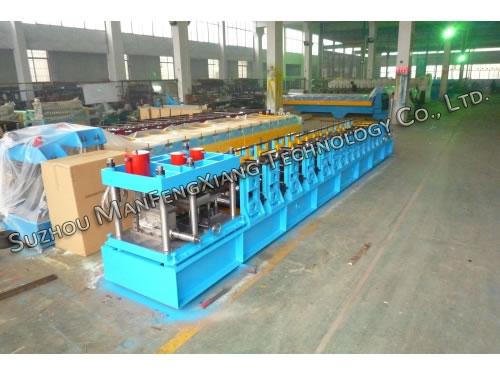

C Purlin Roll Forming Machine
Description
A set of C purlin roll forming machine is mainly made up of uncoiler, roll forming main machine, automatic cut-to-length hydraulic cutting system, automatic hydraulic punching system, PLC control panel with fully automatic control system, etc. Our equipment is made to produce C shaped purlin from pre-painted, galvanized, hot rolled or other steel material coils. The finished C purlin manufactured by this roll forming machine are widely used in steel structure building.
Features
1. C purlin roll forming machine adopts new station to increase the firmness of the machine.
2. It is configured with gearbox transmission to ensure more stable working of the machine.
3. It can cut steel material with thickness 1.5mm to 3.0mm.
4. This roll forming machine can produce different sizes C purlin without changing any rollers.
5. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
6. Fully Automatic Control System with PLC. The thickness, width and height are adjustable and fully controlled by the computer automatically. All you need is just key in sizes and press the control button and then machine will automatically adjust the rollers according to your requirement.

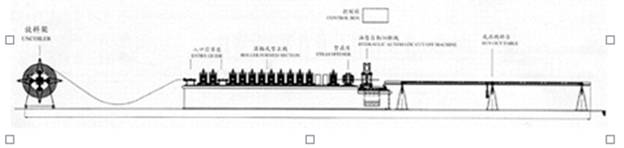

Flow Chart of C Purlin Roll Forming Machine
Uncoil → Punch → Cut to Length → Roll Forming → Run out table
Technical Specification of C Purlin Roll Forming Machine
| Thickness | 1.5mm to 3.0mm |
| Speed | 15m/min (not include cutting and punching) |
| Roll station | 18 stations |
| Main power | 15KW |
| Hydraulic power | 5.5KW |
| Control system | PLC Panasonic |
| Drive | By chain or by gear box |
| Automaticity | Semi-automatic / automatic |
Main Parts of C Purlin Roll Forming Machine
- C Type Steel Punching & Cutting Machine
- 5T Hydraulic Electric Feeding Machine
Profile Sample Produced by C Purlin Roll Forming Machine
Model of C Purlin Roll Forming Machine
| MODEL | H | B | B | C | T |
| C80 | 80 | 40 | 40 | 15 | 1.5-3.0 |
| C100 | 100 | 50 | 50 | 20 | 1.5-3.0 |
| C120 | 120 | 50 | 50 | 20 | 1.5-3.0 |
| C140 | 140 | 50 | 50 | 20 | 1.5-3.0 |
| C160 | 160 | 60 | 60 | 20 | 1.5-3.0 |
| C180 | 180 | 60 | 60 | 20 | 1.5-3.0 |
| C200 | 200 | 60 | 60 | 20 | 1.5-3.0 |
| C220 | 220 | 70 | 60 | 20 | 1.5-3.0 |
| C250 | 250 | 70 | 70 | 20 | 1.5-3.0 |
SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is engaged in supplying different steel processing equipments, including tube mills, roll forming machines, etc. Besides tube mills and roll forming machines, other machines manufactured by us, including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, and other machines also feature high accuracy, easy operation, convenient maintenance and high efficiency. Our tube mills, C purlin roll forming machines and other products have been passed CE certification and sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Manfengxiang is always ready to provide the best solution for your production requirements.
