No-Girder Curve Roll Forming Machine

Introduction
Curve roof roll forming machines manufactured by us are in two types: MFX 610 no-girder curve roll forming machine and MFX 303 no-girder curve roll forming machine. The complete curve roll forming line is composed of the main machine, curving machine and auto seaming machine. Suzhou Manfengxiang is reliable no-girder curve roll forming machine maker, and our products adopt advanced technology and devices in production.

Categories

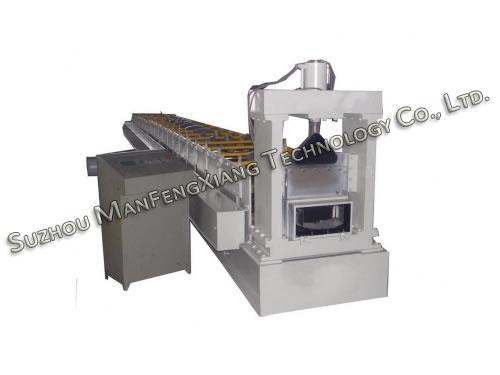

1. MFX 610 No-Girder Curve Roof Roll Forming Machine
(1) Maximum width of raw material is 914 mm. And the effective width is 610 mm.
(2) Available metal sheets are in thickness of 0.8 mm to 1.2 mm.
(3) It has 17 roll stations.
(4) Rollers are made from 45 # forge steel. And they are polished and coated with chrome.
(5) Main shaft also adopts 45 # forge steel, its diameter is 80 mm.
(6) In MFX 610 no-girder curve roof roll forming machine, rolling speed ranges from 12 m/min to 15 m/min.
(7) The main power is 7.5 KW, and the hydraulic station power is 4 KW. The hydraulic pressure is 12 Mpa.
(8) It is controlled by Panasonic PLC system.
(9) SKD11 steel is applied in manufacturing cutters.
(10) The complete line includes one set of the main machine, one set of curving machine and one set of auto seaming machine.
Photo of the bending machine

Photo of the seaming machine

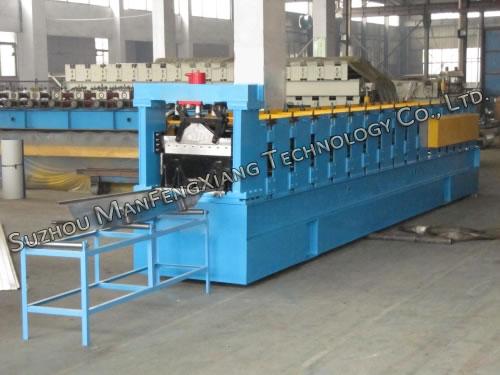

2. MFX 303 No-Girder Curve Roof Roll Forming Machine
(1) Maximum width of raw material is 618 mm. And effective width is 303 mm.
(2) Available metal sheets are in thickness of 0.8 mm to 1.2 mm.
(3) It has 14 roll stations.
(4) The main power is 5.5 KW, bending machine power is 4 KW, and the hydraulic station power is 2.2 KW.
(5) It is controlled by Panasonic PLC system.
(6) In MFX 303 no-girder curve roof roll forming machine, rolling speed ranges from 10 m/min to 15 m/min.
(7) The complete line includes one set of the main machine, one set of curving machine and one set of auto seaming machine.
Photo of the bending machine
Photo of the seaming machine
